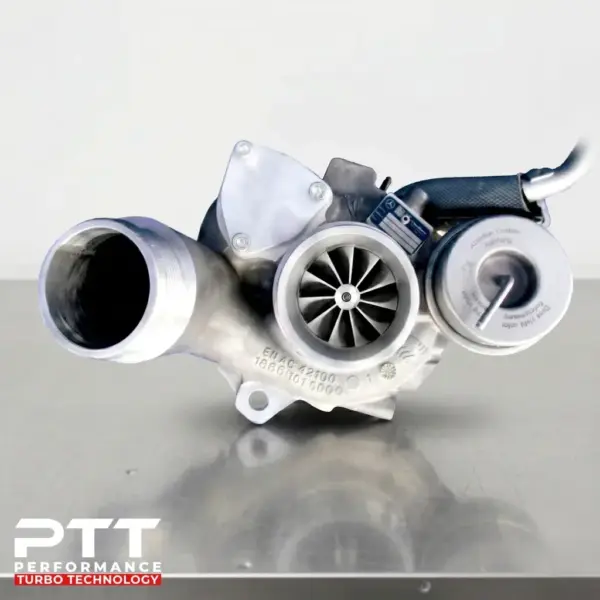

Mercedes-AMG CLA45 / A45 Hybrid Turbo Upgrade | 520–560 PS

Unlock Serious Power from Your Mercedes-AMG 2.0 Turbo

The Mercedes-AMG CLA45 and A45 are among the most impressive 2.0 turbo performance platforms ever built. If you want significantly more power while retaining fast spool and OEM-style fitment, this Hybrid Turbo Upgrade is the ideal solution.

Built using the original KKK turbocharger housing, this upgraded hybrid turbo is engineered for exceptional airflow, high boost reliability and serious horsepower potential.

Capable of producing:

• 510–520 PS on high-octane petrol

• 550–560 PS on ethanol / alcohol fuel blends

  (With the correct supporting modifications and ECU calibration)

Key Benefits

• Supports up to 560 PS
• Very fast spool response
• Strong mid-range torque
• Excellent top-end airflow
• OEM-based turbo platform
• Built for tuned street & race builds

Available Configurations

• Stage 1: Includes a larger CNC compressor wheel, clipped turbine wheel, and reinforced sport bearings. Optimized for high response and significant power gains over stock.

• Stage 2: Includes all Stage 1 upgrades plus a larger exhaust turbine wheel and a reinforced actuator for maximum top-end power and boost stability.

Internal Upgrades Included

• Larger CNC compressor wheel
• Enlarged turbine wheel (Stage 2 features an even larger exhaust wheel)
• Clipped turbine for improved exhaust flow
• Reinforced sport bearing system
• Reinforced actuator (Stage 2)
• Precision-balanced rotating assembly
• Optimised OEM KKK turbo housing

Performance Characteristics

This turbo is engineered to retain responsiveness while significantly increasing peak power.

What You Can Expect:

• Quick boost response
• Strong acceleration throughout rev range
• High airflow at upper RPM
• Better efficiency than stock turbo
• Reliable performance under increased boost

Technical specification

Details	Stage 1	Stage 2
Engine Compatibility	Mercedes M133 2.0 Turbo	Mercedes M133 2.0 Turbo
Vehicle Fitment	A45 / CLA45 / GLA45	A45 / CLA45 / GLA45
Compressor Wheel	Larger CNC Wheel	Larger CNC Wheel
Turbine Wheel	Enlarged / Clipped	Larger Exhaust Wheel / Clipped
Actuator	Standard	Reinforced Sport Actuator
Bearing Type	Reinforced Sport Bearings	Reinforced Sport Bearings
Power Output (Petrol)	510–520 PS	530+ PS
Power Output (Ethanol)	550–560 PS	570+ PS
Max Boost Pressure	Approx. 2.2–2.4 bar	Approx. 2.4–2.6 bar

Weight	5 kg
Product type	Just Upgrade, Complete Turbo
Power range	560HP, 450HP

Vehicle Compatibility

Vehicle	Engine Code	Displacement
Mercedes CLA	—	—

If unsure about compatibility, contact us with VIN number before ordering.

⟶ Warranty
Every upgraded turbocharger comes with a 12-month warranty with no mileage limit.

⟶ Lead Time & Shipping
We typically need around 2 weeks to complete and dispatch your upgraded unit. In more complex cases, allow up to 3 weeks (turbo upgrades demand precision, and our machining process is not something we rush).

Shipping costs and carriers:

• European Union: €25 via DPD
• United Kingdom: €49 via DHL
• Rest of the World: €99 via UPS

Average delivery time: 3–14 working days.

⟶ Full Insurance
Every parcel is fully insured from our workshop to your door.

⟶ Don't See Your Turbo Listed?
Our catalogue is just a fraction of what we can do. Contact us, our development team is constantly working on new models and we can likely build what you need.

⟶ Required Information at Checkout
To ensure your turbocharger is built correctly, please include the following when placing your order:

• Engine code
• Car model
• Stock power output
• VIN number

⟶ Which Option Is Right for You?

• Just Upgrade: You send us your existing turbocharger and we modify it. The unit must be genuine and free of cracks.
• Complete Turbo: We supply a fully built, ready-to-install turbocharger set. Nothing to send, just order and fit.

• Turbo Modification Service (Core Exchange Type)
  This listing is for the modification of your original turbocharger. You must send your turbocharger to us for upgrade.
• Turnaround Time: up to 14 working days after receiving your turbo.
• Ready-built turbocharger may be available separately after prior arrangement.
• If the electronic actuator/controller is damaged, repair/replacement is not included.
• If no old turbo is sent, a refundable core deposit applies.
