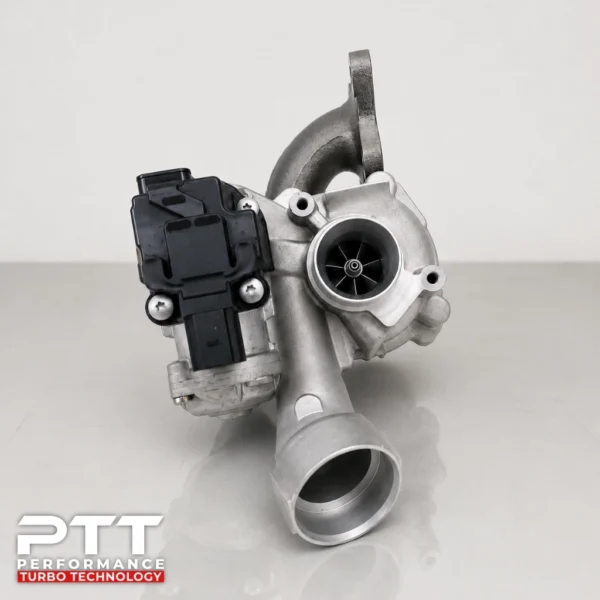

160 HP upgraded turbo for 1.2 TSI EA211 engine with billet wheel

MANUFACTURER:

PTT Performance EA211 1.2 TSI Hybrid Turbo | 160 HP | Billet Wheel + Clipped Turbine

Name: PTT Performance EA211 1.2 TSI Hybrid Turbo | 160 HP | Billet Wheel + Clipped Turbine
Brand: Mahle
SKU: 2362
Price: 1149.00 EUR
Availability: InStock

1149,00 €

Category: Hybrid Turbos Brand: Mahle

Audi A3 1.2TFSI (8V), Seat Ibiza IV 1.2TSI, Seat Leon 1.2TSI III, Seat Toledo IV 1.2TSI, Skoda Fabia III 1.2 TSI, Skoda Octavia 1.2TFSI III, Skoda Rapid II 1.2TSI, VW Beetle 1.2TSI, VW Caddy IV 1.2TSI, VW Golf VI 1.2TSI, VW Golf VII 1.2TSI, VW Polo V 1.2TSI, VW Touran III 1.2TSI

Payment methods

Performance hybrid turbo for VAG EA211 1.2 TSI/TFSI engines (86-110 HP factory). Features a custom CNC billet compressor wheel, clipped and lightened turbine wheel, and reinforced bearings. Delivers up to 160 HP – a 74 HP gain over stock. 100% plug-and-play fitment on original Mahle turbo housing. Ideal for daily drivers seeking genuine extra performance.

⚠️ Please verify your engine code (EA211 family) and turbo fitment before ordering. This turbo is based on the original Mahle core.

Description

Serious Performance Upgrade

The EA211 1.2 TSI/TFSI is a capable little engine – but factory power leaves enthusiasts wanting more. This PTT Performance hybrid turbo transforms your daily driver without sacrificing drivability or reliability. Built on the original Mahle turbocharger core, it retains factory fitment while delivering significantly improved airflow and sustained power delivery across the rev range.

Whether you drive an Audi A3, VW Golf, Seat Leon, or Skoda Octavia, this is the bolt-on upgrade your 1.2 TSI deserves.

Why This Turbo Wins

✅ Up to 160 HP – a 74 HP gain over factory 86-110 HP
✅ 120% power increase potential over standard output
✅ Custom CNC billet compressor wheel – lightweight, precision-machined
✅ Clipped and lightened turbine wheel – reduced inertia, faster response
✅ 100% plug & play – direct fit on original Mahle housing
✅ Fast spool from low RPM – excellent daily-driver manners
✅ High air-fuel ratio capability – supports efficient combustion
✅ High peak torque at low engine speeds – effortless driving

Internal Upgrades

Custom CNC billet compressor wheel (lightweight, high-flow design)
Clipped turbine wheel (reduced backpressure, improved exhaust flow)
Lightened turbine wheel assembly (lower rotational inertia)
Reinforced bearing system (upgraded for sustained higher boost)
Upgraded 360° thrust bearing
Precision-balanced rotating assembly
Professional machining of OEM Mahle housing
High-temperature seals and assembly

Performance Characteristics

This hybrid is engineered to deliver more power without compromising the responsive character that makes the 1.2 TSI so enjoyable.

What you can expect:

Very fast spool response – positive boost from low RPM
High peak torque achieved at low engine speeds
Strong, linear power delivery from 2,000 RPM upward
Sustained boost through the mid-range
Improved top-end holding compared to stock
Effortless motorway cruising and overtaking
Transforms the car from economical to genuinely engaging

The clipped and lightened turbine reduces inertia, meaning throttle response remains sharp despite the significantly higher power output.

Additional information

Product type	Just Upgrade

Part Numbers

OEM Numbers	Factory Numbers
04E145703Q	030TC11001000
04E145703QV	030 TC 11001 000
04E145703QX	030.TC.11001.000
04E145704N
04E145704NV
04E145704NX
04E145704T
04E145704TV
04E145704TX
04E145713B
04E145713BV
04E145713BX
04E145713Q
04E145713QV
04E145713QX
04E145721L
04E145721LV
04E145721LX

Vehicle Compatibility

Vehicle	Engine Code	Displacement
Audi A3 1.2TFSI (8V)	—	—
Seat Ibiza IV 1.2TSI	—	—
Seat Leon 1.2TSI III	—	—
Seat Toledo IV 1.2TSI	—	—
Skoda Fabia III 1.2 TSI	—	—
Skoda Octavia 1.2TFSI III	—	—
Skoda Rapid II 1.2TSI	—	—
VW Beetle 1.2TSI	—	—
VW Caddy IV 1.2TSI	—	—
VW Golf VI 1.2TSI	—	—
VW Golf VII 1.2TSI	—	—
VW Polo V 1.2TSI	—	—
VW Touran III 1.2TSI	—	—

If unsure about compatibility, contact us with VIN number before ordering.

Before You Order

⟶ Warranty
Every upgraded turbocharger comes with a 12-month warranty with no mileage limit.

⟶ Lead Time & Shipping
We typically need around 2 weeks to complete and dispatch your upgraded unit. In more complex cases, allow up to 3 weeks (turbo upgrades demand precision, and our machining process is not something we rush).

Shipping costs and carriers:

European Union: €25 via DPD
United Kingdom: €49 via DHL
Rest of the World: €99 via UPS

Average delivery time: 3–14 working days.

⟶ Full Insurance
Every parcel is fully insured from our workshop to your door.

⟶ Don't See Your Turbo Listed?
Our catalogue is just a fraction of what we can do. Contact us, our development team is constantly working on new models and we can likely build what you need.

⟶ Required Information at Checkout
To ensure your turbocharger is built correctly, please include the following when placing your order:

Engine code
Car model
Stock power output
VIN number

⟶ Which Option Is Right for You?

Just Upgrade: You send us your existing turbocharger and we modify it. The unit must be genuine and free of cracks.
Complete Turbo: We supply a fully built, ready-to-install turbocharger set. Nothing to send, just order and fit.

Important Purchase Information

Turbo Modification Service (Core Exchange Type)
This listing is for the modification of your original turbocharger. You must send your turbocharger to us for upgrade.
Turnaround Time: up to 14 working days after receiving your turbo.
Ready-built turbocharger may be available separately after prior arrangement.
If the electronic actuator/controller is damaged, repair/replacement is not included.
If no old turbo is sent, a refundable core deposit applies.
